Shielding references for real design decisions
Specify mating parts, working positions and component or matched-set supply.
6 product references shown

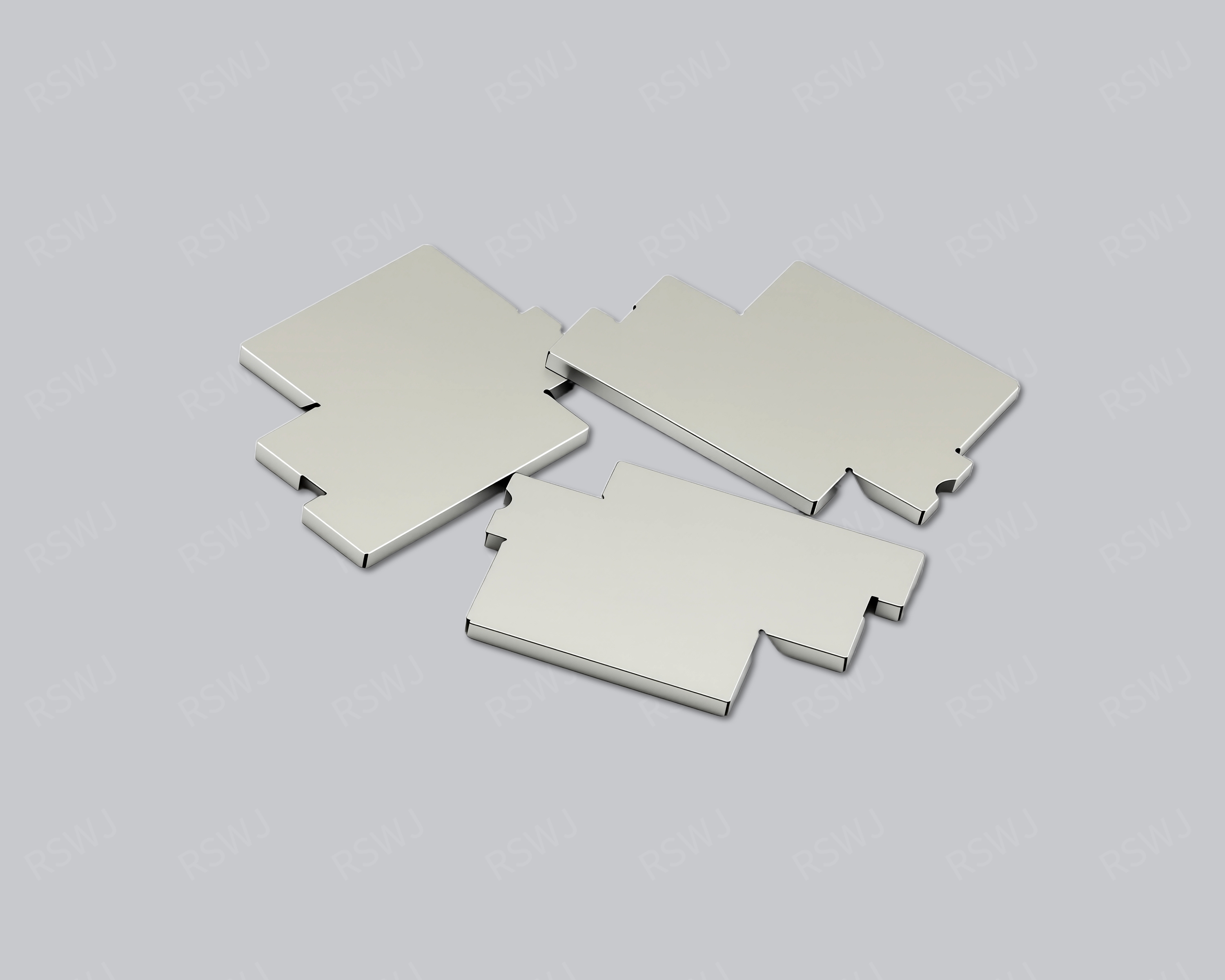

EMI Shielding Lid
A shielding lid closes the upper side of a frame or base and is defined with that mating structure.
Explore the product & design →

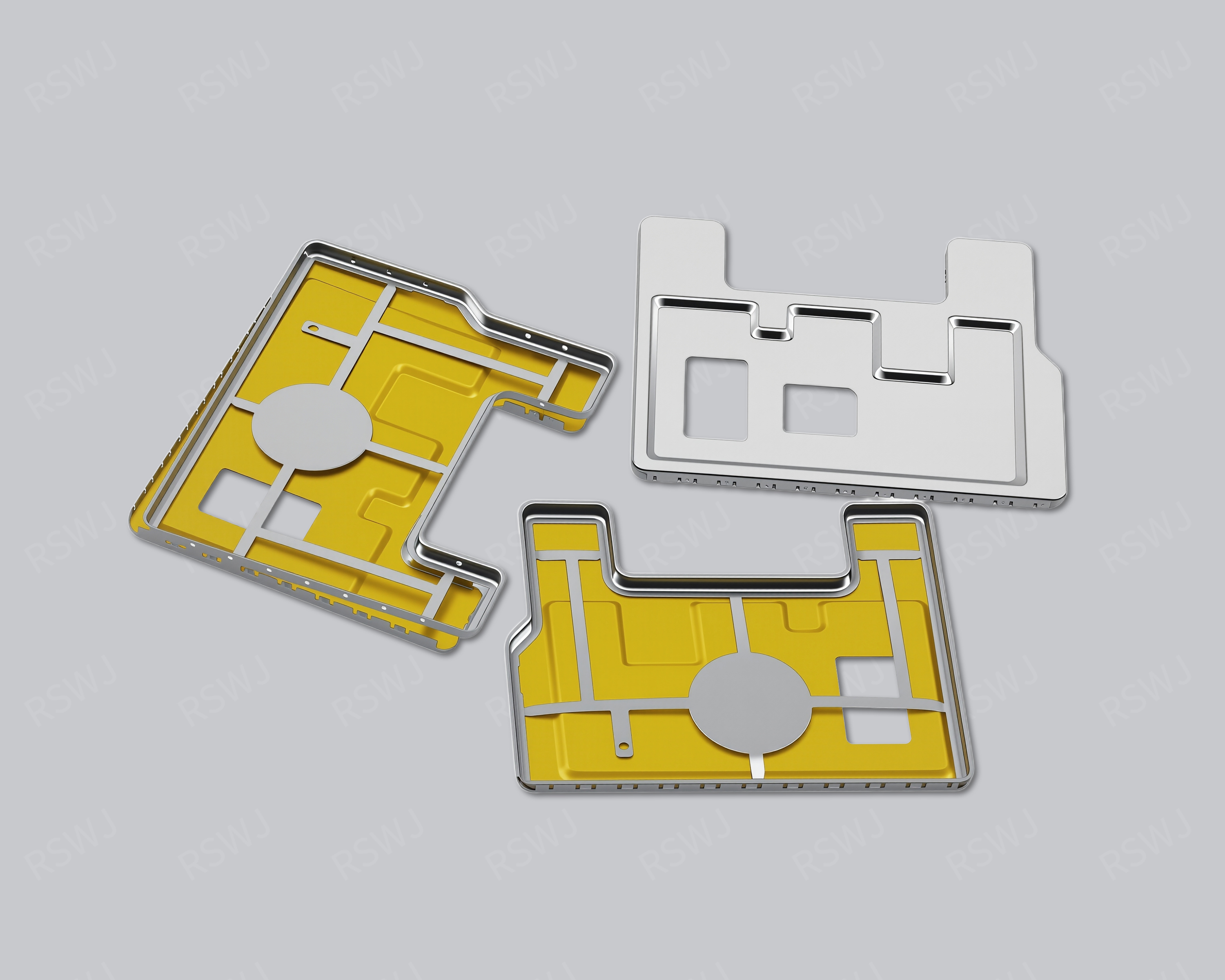

EMI Shielding Frame
A shielding frame connects a PCB attachment perimeter with the mating edge of a lid or other closure.
Explore the product & design →

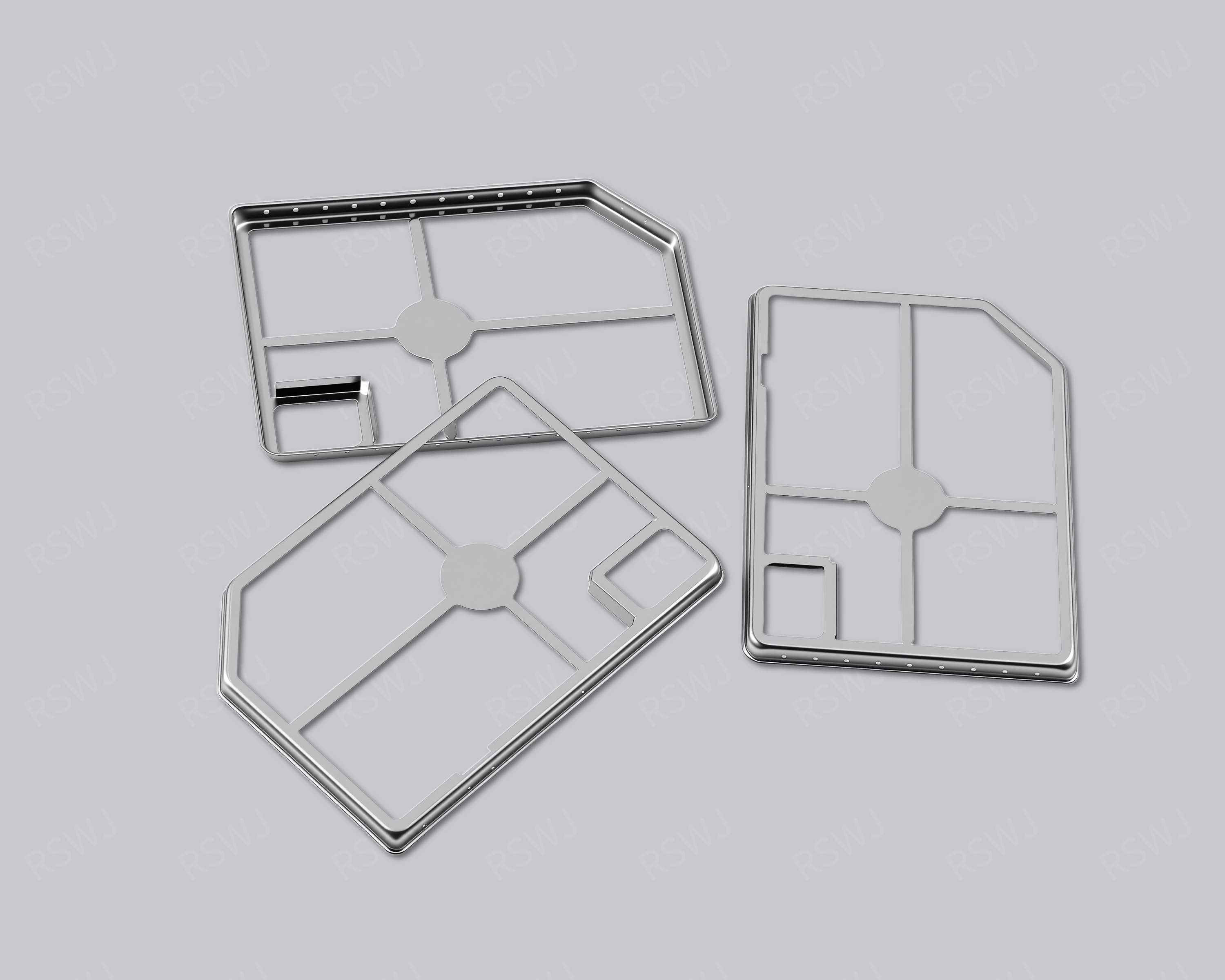

SMT Shielding Frame
An SMT shielding structure connects local coverage with surface-mount placement and attachment.
Explore the product & design →
Shielding Clip
A shielding clip provides a local retaining or contact interface in a board-level assembly.
Explore the product & design →

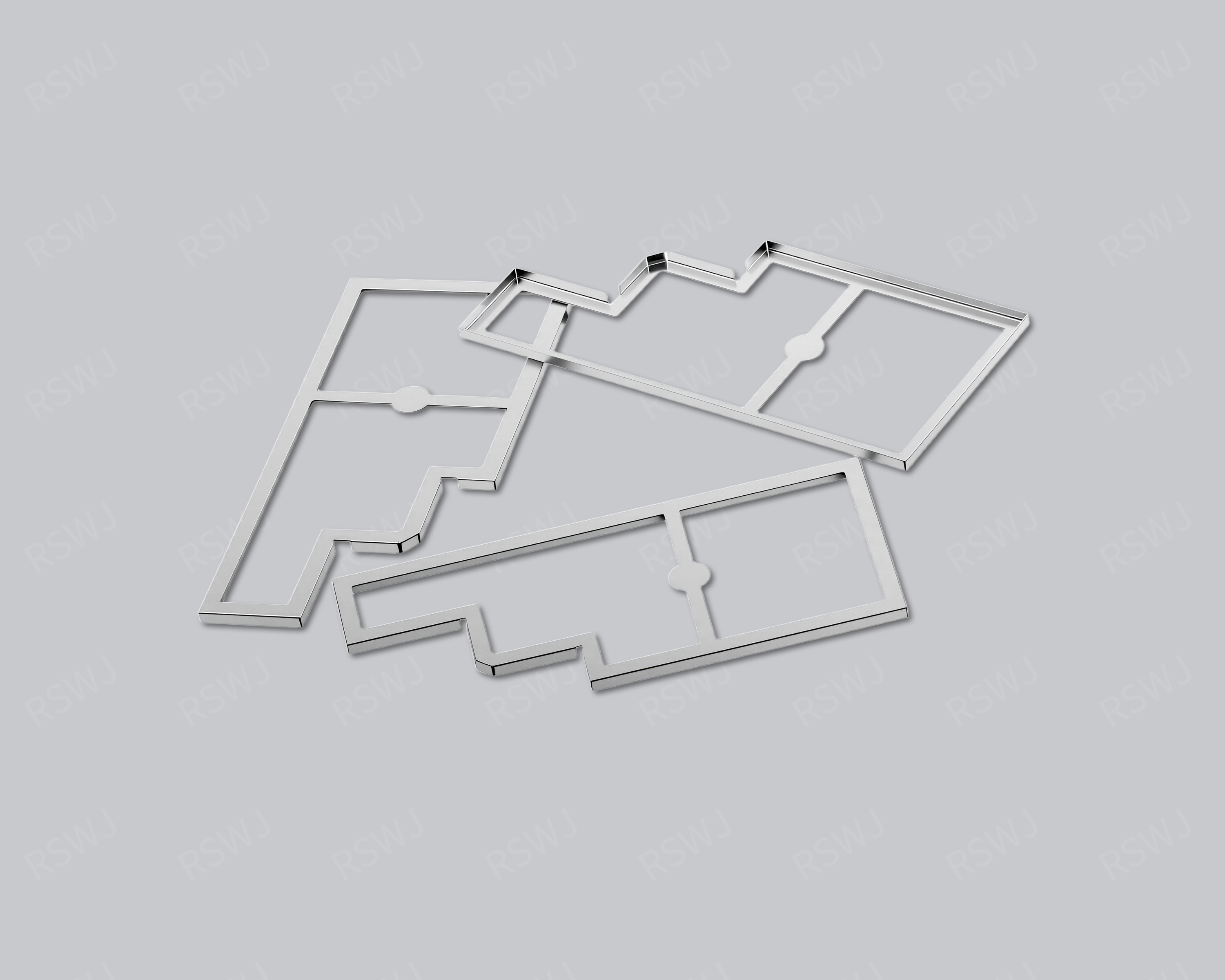

Board-Level Shielding Frame
A shielding frame connects a PCB attachment perimeter with the mating edge of a lid or other closure.
Explore the product & design →

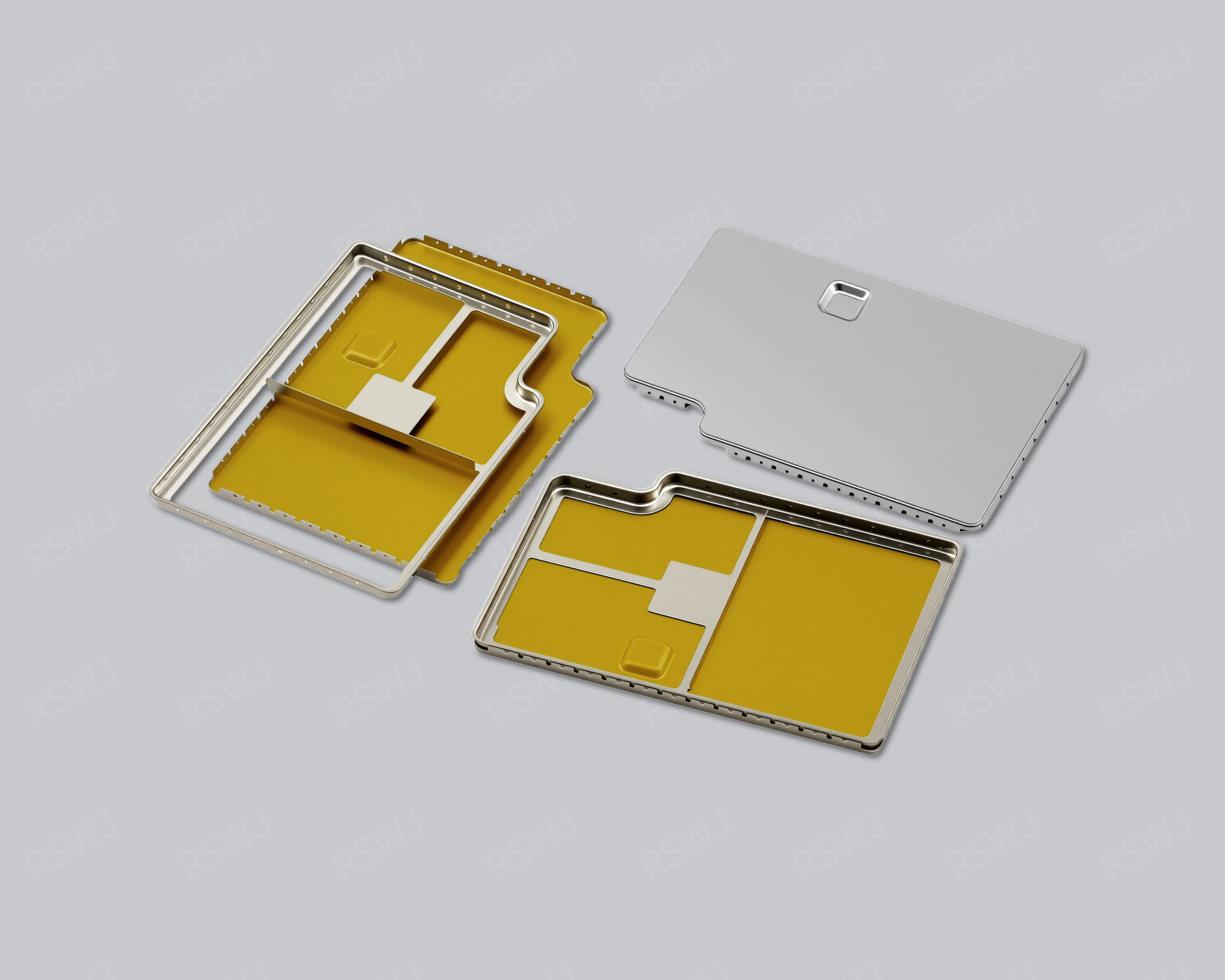

Shielding Frame
A shielding frame connects a PCB attachment perimeter with the mating edge of a lid or other closure.
Explore the product & design →Define the partner for every frame, lid or clip
The mating assembly gives a component its role. Provide the corresponding frame, cover, can edge or PCB revision even when the request covers only one part. Inspect working position and installation access in addition to the loose component dimensions.
Define the sample before comparing it
Provide the drawing revision, material, mating components and required acceptance checks. Samples are chargeable. Reference planning is 3–5 days for standard samples, 48 hours for expedited sampling, and 7–10 days for tooling and sample production. These arrangements exclude mass-production delivery; the actual project scope and timing are reviewed separately.
Discuss the drawing package
